MFD(Multi Function Device)
2MCU-300WU - Multi Functional Energy Storage System)

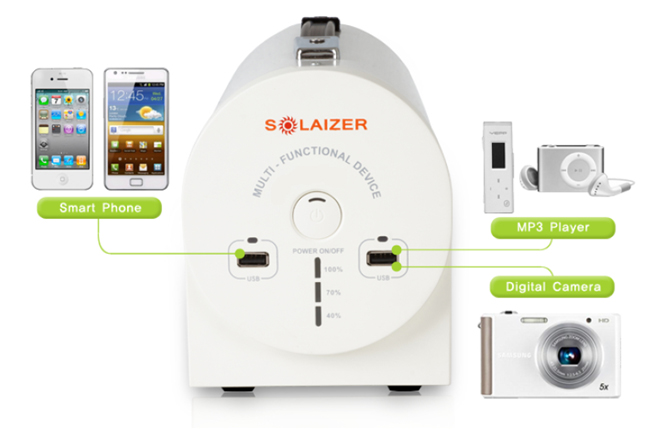

MCU-300WU(Solar Multi-functional Device )
- Camping
Use in a tent inside and outside - At night
Security light in the mauntain and pension without electricity - Market stalls
Can be installed a street stalls, the food sales, a market stalls, the vending machine.

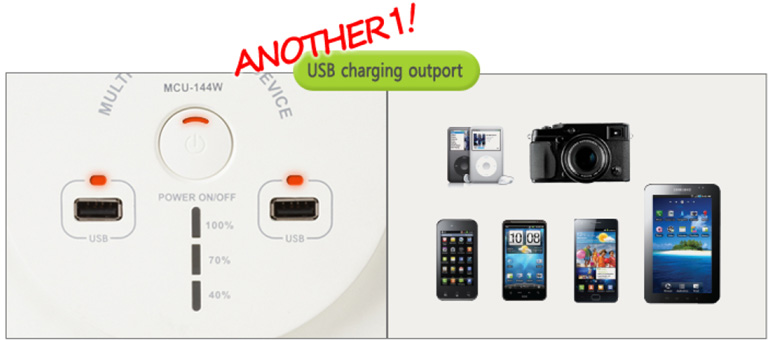

LED Lamp function and PLUS ANOTHER1!
Can charge various smart devices through 2 USB outports in front.
With charging status checking indicators.
Automatic Power On/Off & Supports Dual Charging Mode
Don't Bother! Do not need to Turn on/off the power by your hands.
Equipped with light sensor, Turns ON and OFF by itself.
It detects Iuminous soruce and environmental light intensity.
It Turns light on and off automatically to maximize battery efficiency.
Support solar /DC Adapter in Dual Charging Mode
It can charged by Solar power and normal DC Adaptor(24V/over 1.8A)
Key Features
Technical Characteristics of Micom Control Circuit
- Built-in Lithium-ion Battery that ensures a long life
Never compare to unstable cheap and short-life lead-acid battery.
Use only Korean made lithium-ion battery in domestic production
- Maximum Power Point Tracking
MPPT : Maximum Power Point Tracking
World First Function
MPPT automatically tracks to maintain the best charging status.
- Generation Maximum Power Indicator
GMPI : Generation Maximum Power Indicator
World First Function
GMPI measures the generated amount and indicates the status by LED.
- Protecting battery
Battery is protected by automatic power shut off in cases of low voltage due to discharging or
high voltage due to over charging.
- Indicating battery charging amount
Displaying battery charging amount with different indicator LED light.
- Indicating residual battery amount and solar generating status.
Multi-Color LED indicator shows two functional status.
- Power Control Unit output jack protection from over flow
Automatically blocks the output jack to protect from any malfunction or
short circuit of plugged-in equipment.
- Indicating residual battery amount and solar generating status
Multi-Color LED indicator shows two functional status.
Using : Displaying battery residual amount with 3 different LED light.
Charging by solar panel: Displaying solar power generation efficiency and fully charged status. With solar charging mode, Each LED color indicate the state of solar power generation status.
- Green : When solar power generation efficiency is the best(the sun is the strongest)
- Orange : When solar power generation efficiency is midpoint(the sun is strong)
- Red : When solar power generation efficiency is the lowest(cloudy weather)
When the sun is strong, user can adjust the angle of solar panel to have green or orange indicator light come on and maximize the charging and generation efficiency. This function allows user to find out the optimum tilt of solar panel very easily and to install solar cell for the maximum charging point.(GMPI function-WORLD FIRST)
It automatically tracks the maximum power output from solar panel and to maintain the best charging status.(MPPT function-WORLD FIRST)
With solar generating mode, LED indicator is blinking at intervals of 1 second. User can check current solar generation efficiency and status When fully charged, Green LED is blinking slowly at intervals of 3~4seconds regardless of the generating status.
1 Full set contents and Specification
SPV 80W 1EA
MCU 1EA
LED LAMP(3.6W) 1EA
| Description | MCU-300 | |
|---|---|---|
| AC OUTPUT | Output Rated Voltage | AC220V |
| Output Voltage No Load | AC225V~AC232V | |
| Output Frequency | 60Hz | |
| Output Power Max | 175W | |
| Output Power Surge | 250W | |
| Output Power Continuous | 100W | |
| Output Power Max Capacity (when bettery is fully charged) |
240W | |
| Output wave From | Modified Sine Wave | |
| DC OUTPUT | Output Rated Voltage | 10.8V |
| Output Voltage Range | 9.8 ~12.6V | |
| Output Ports | 4EA | |
| Output Fuse | 8A | |
| Charge Input | Charge Voltage Range | 12~27V |
| Charge Max Curent | 4.5A | |
| Charged by a solar panel charging time(SPV80W) | 5Hours(It takes 1 day: be based on sunny day) | |
| Lithium Ion Battery | Cell Manufacturer/Model No. | LG/ICR18650B4/4S9P |
| Output Rated Voltage | 10.8V | |
| Output Voltate Range | 10.8~12.6V | |
| Curnet Capacity | 28Ah | |
| Max Capacity | 300W | |
| Structure | Protection Rating | I P24 |
| Dimensions | 124X261X167 (W X D X H) mm | |
| Weight | 4.1Kg | |
| Environmental | Operating Temperature | -0~40℃ (No Freezing, No Dew condensation) |
| Storage Temperature | -20~60℃ (No Freezing, No Dew condensation) | |
| Humidity | 0~85%RH | |

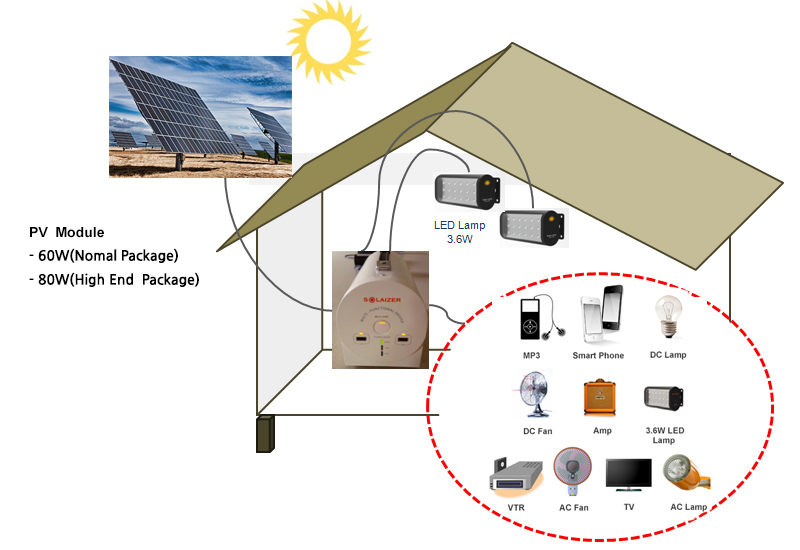

Installation Drawing
